FEATURES
- With auto memory function after Power restart
- Full Power charging
- Boost mode and Power Supply mode
- Selective mode for AGM and Winter condition
- Fit for Calcium / Lead Acid / AGM and Gel Batteries

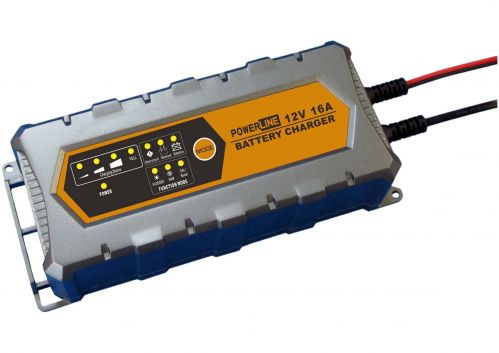

| Model | 12V 16A | |
| Input Voltage | 220-240VAC 50/60Hz | |
| Input Cable | AC Power Cord | |
| Charging End Voltage | 12V Lead Batteries: 14.4V or 14.7V Calcium Batteries: 16V or 16.2V |
|
|
Battery Charge capacity: |
30Ah - 300Ah upto 500Ah (Maintenance) | |
| Abnormality Protection | Short Circuit; Battery Defective and Reverse Connection |
|
| Charging Mode | Fully Automatic Switch Mode: - 12V SLA battery (LEAD mode) - 12V AGM battery (AGM mode) - Calcium battery (CAL / BOOST mode) - Maintenance Mode: (MAINT. Mode) |
|
| Material Of Housing | Polycarbonate | |
| Approval | GS / CE | |
| Protection Class | Class II | |
| Application | Used in Car, Motorbike, Vehicles, Boat | |
Specification
| MODEL | PL-C016P |
| Charging current (A) | 16Amp |
| Charging voltage (V) | 12V |
| For battery: | |
| Open WET | √ |
| Maintenance free | √ |
| AGM/VRLA | √ |
| Calcium | √ |
| To charge battery capacity | 30 - 300Ah |
| To maintain battery capacity | 30 - 500Ah |
| Microprocessor controlled | √ |
| Charging steps: | |
| Float charge | √ |
| Overcharge protection | √ |
| Allow for safe contiounus charge | √ |
| Boost | √ |
| Recovery function | √ |
| IP rating | |
| Charge Status indiations: | |
| Battery defect | √ |
| Wrong connection | √ |
| Wrong polarity | √ |
| Short circuit | √ |
| Charging progress indication | √ |
| Full charge indication | √ |
| 230V power on | √ |
| built-in protection | √ |
| EMC free | √ |
| Reversed polarity Protection | √ |
| Short-circuit-protection | √ |
| Spark free protection | √ |
| Mechanical features | √ |
| Length of Dc cables | |
| Length of AC 230V cable | |

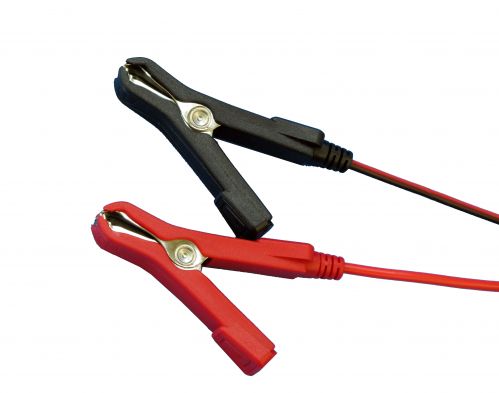

| DC charging clips fully insulated | |
| Material of housing | |
| Fire retardant material | |
| Dimensions | 585x415x235mm |
| weight |
